Detailed Specification as below.

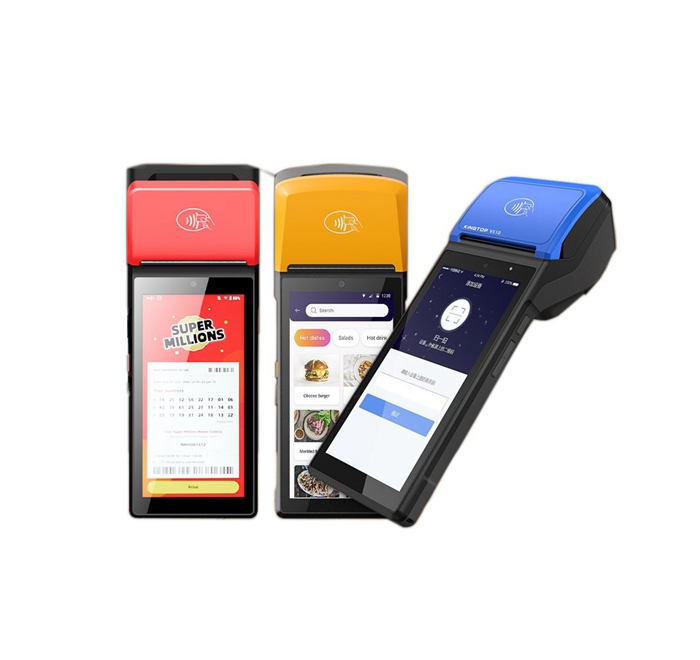

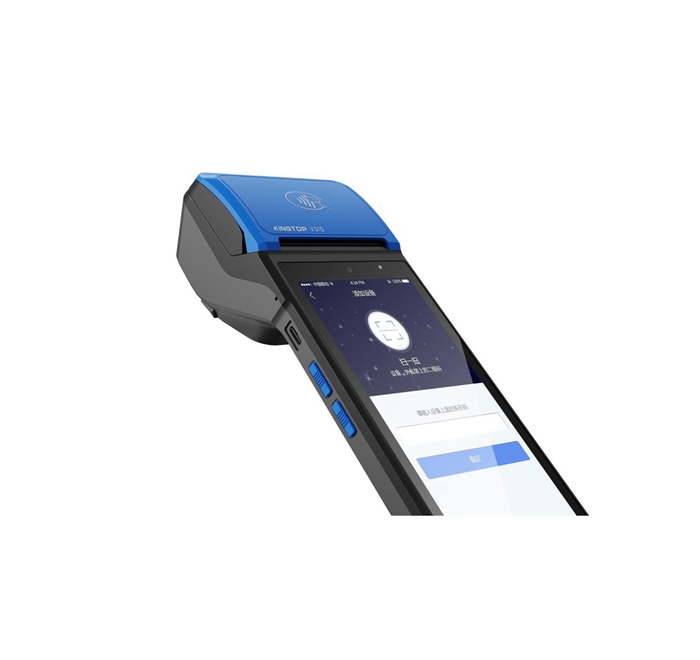

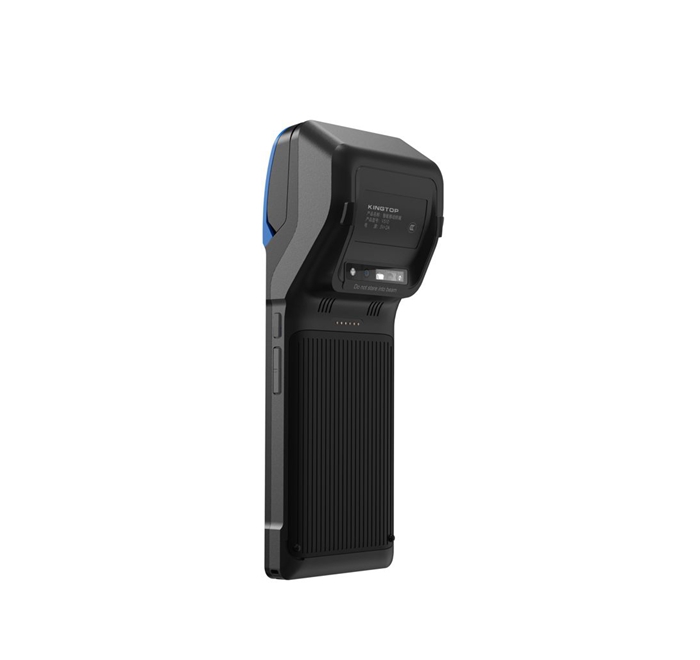

Wireless smart printing terminal V510
5.5inch classic Multi-functional commercial payment machine.
Product Details
Hardware platform | Android OS | Android 12.0 |
CPU | ARM Contex-A53 2.0GHz | |
Memory | 2GB +16GB | |
Communication transmission | Eurasian Network | FDD-LTE:B1/B3/B5/B7/B8/B20/B26/B28 TDD-LTE:B38/B39/B40/B41 WCDMA:B1/B2/B5/B8 GSM/EDGE/GPRS: 850/900/1800/1900 |
latin american network (optional) | FDD-LTE:B2/B4/B5/B7/B12/B13/B14/B17/B28 TDD-LTE:B38/B39/B40/B41 WCDMA : B2/B4/B5/B8 GSM/EDGE/GPRS : 850/900/1800/1900 | |
Communication Interface | Type-C audio port, dual-band Wi-Fi, Bluetooth 4.1+ BR/EDR + BLE, GPS | |
product specifications | Display | 5.45 18:9 fully bonded assembly HD 720x1440dots G+FF |
printer | 2- inch high-speed thermal printer, speed 100mm/ second, Paper roll width 58mm, paper roll diameter 40mm Supports glue-free thermal label printing Support barcode proofing and picture proofing | |
PSAM | 2 x standard PSAM card holder; supports 1.8V/3.3V/5.0V , Comply with ISO7816 specification | |
SIM+TF | 1 x SIM : 1×micro SIM card; 1 x TF | |
Type-C | 1 x Type-C , support OTG | |
Camera | Front camera FF , 200 pixels | |
Rear camera AF , 5 million pixels, independent algorithm support Supports taking photos and 1D/2D quick code scanning , supports full code |
product specifications | NFC reader (optional) | Standard Android interface NFC version: Support Type A , TypeB , Mifare , Felica , ID card Support 13.56MHZ, IISO/ICE14443 , ISO15693 standards Support card reading, card simulation, point-to-point EMV encrypted NFC version : Support: 13.56MHZ, IISO/ICE14443 , ISO15693 standards Support Type A , TypeB , Mifare , ID card |
scanning read head (optional) | Supported one-dimensional code systems: UPC/EAN, UPC/EAN with supplementals , Code128, GS1-128, Code 39, Trioptic , Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5 , Industrial 2 of 5,Codabar, Codablock F,MSI,Telepen,Code11, GS1 DataBar variants Supported QR code systems: PDF417, MicroPDF417, Composite Code, Data Matrix, Maxicode , QR Code, MicroQR , Aztec | |
trumpet | 1 x BOX cavity speaker , rated power 1W , Loudness above | |
earphone | Type-C headphones | |
POGOPIN | 6 pin supports charging and USB communication | |
Operating temperature | 0℃～50℃ | |
storage temperature | -20℃～70℃ | |
Relative humidity | 5% ~ 95% (non-condensing) | |
Battery | Polymer battery , 7.6V/2500mAh (equivalent to 4.2V/5000mAh ) | |
power supply | DC5V, 2.5A | |
Product Size | 212*78*57mm |
Bluetooth protocol adaptation APP | ||
Libya | AI- Kamel | |
Austria | Certapos | |
Saudi Arabia | Bluetooth Thermal | |
Barbados | LightBlue | |
… | ||
other | Uniapp | Support demo |
Flutter | Support demo | |
Product qualification | Product safety certification | CCC has obtained the certificate |
Product safety certification | CTA and other certificates | |
Product safety certification | SRRC and other certificates | |
battery certificate | CCC certificate + report | |
battery certificate | MSDS | |
battery certificate | UN38.3 | |
battery certificate | Shipping967 | |
battery certificate | Air Freight + Summary |
