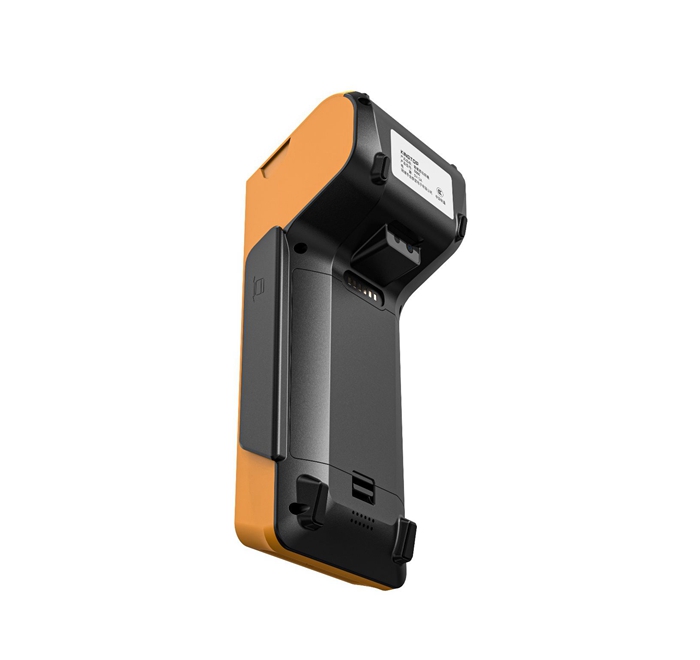

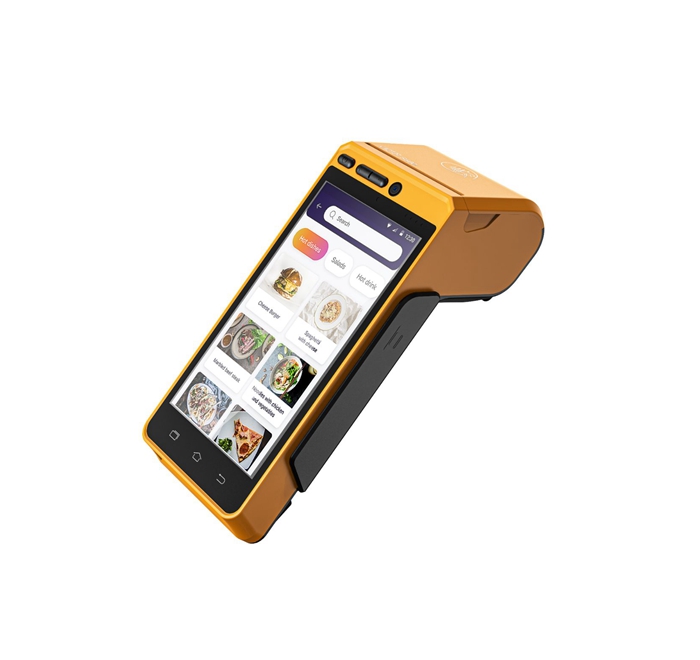

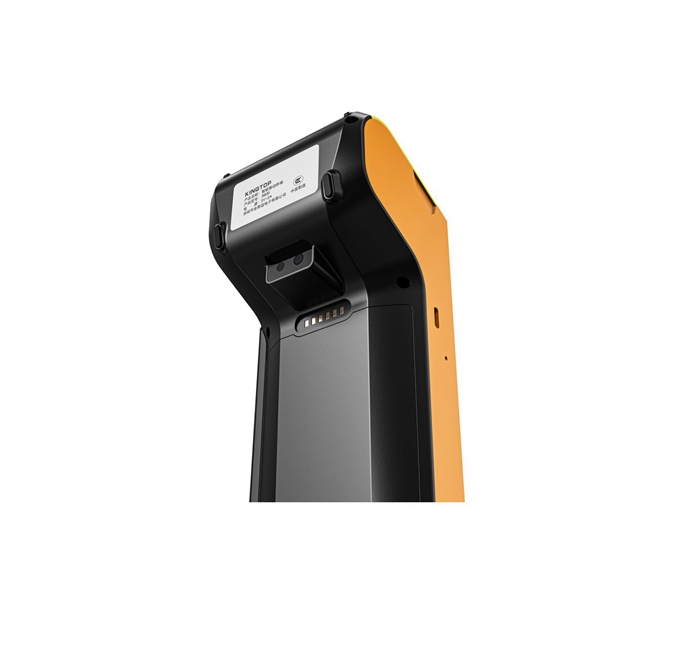

Wireless mobile smart terminal S600

5.5inch classic POS machine.
Detailed Specification as below.

Product Details

Hardware   platform

Android OS

Android   12.0

CPU

AP   :   Quad-core   high-performance ARM Cortex-A53 MPCoreTM

SP   : IC-MCU-216   MHz ARM Cortex-M3 core-MAPBGA_121-1.71~3.6V

Memory

2GB   +16GB

Communication   transmission

Eurasian   Network

FDD-LTE:B1/B3/B5/B7/B8/B20/B26/B28

TDD-LTE:B38/B39/B40/B41

WCDMA:B1/B2/B5/B8

GSM/EDGE/GPRS : 850/900/1800/1900

latin   american network

(optional)

FDD-LTE:B2/B4/B5/B7/B12/B13/B14/B17/B28

TDD-LTE:B38/B39/B40/B41

WCDMA : B2/B4/B5/B8

GSM/EDGE/GPRS : 850/900/1800/1900

Communication   Interface

Type-C data port, dual-band Wi-Fi,   Bluetooth 4.1+ BR/EDR + BLE, GPS

product   specifications

Display

5.   5" fully bonded assembly HD 720x1 280   dots G+FF

printer

High-speed thermal printer, speed 120mm/ second ,

Paper roll width 58mm, diameter 40mm

ICCR   card reader

Supports   CPU cards,   memory cards, synchronous cards, and asynchronous cards, compliant with EMV , PBOC ,   and ISO7816 specifications

MSR   card reader

Supports   three-track magnetic cards, supports two-way card swiping, card swiping speed   is 10cm-100cm , complies with ISO7810 ,   ISO7811 ,   ISO7812 specifications

NFC   reader

Support   Type A card,   Type B card,   Mifare card,   comply with EMV   , QPBOC   , ISO14443   specifications

Key   system

Support   AES   ,   RSA   ,   DES   ,   3DES   ,   SHA-256   ,   SM2   ,   SM3   ,   SM4

Camera

Front camera FF , 2   million pixels ,   rear   camera AF , 5   million pixels,

Supports taking photos and 1D/2D quick   code scanning

sensor

Support light perception

product   specifications

Type-C

1 x Type-C ,   supports OTG   ,   supports serial port

SIM

1 x SIM : 1× PSAM card /SIM card

PSAM

2 x standard PSAM card holder; supports 1.8V/3.3V/5.0V   ,

Comply with ISO7816   specification

TF

1 x TF card holder

trumpet

1 x dual magnetic 2030   speaker

earphone

1 x standard round hole 3.5mm   headphone   jack

POGOPIN

6 pin supports charging and USB   communication   serial port communication

Operating   temperature

-10℃ 50℃

storage   temperature

-20℃~70℃

Relative   humidity

5% ~ 95% (non-condensing)

Battery

Polymer battery, 7.6V/ 31 00mAh (equivalent to 4.2V/6200mAh )

power   supply

DC5V, 2.5A

Product   Size

190*80*64.5mm

Certification   qualification

(in   progress )

Battery safety regulations

Support   certificate: UN38.3

Support   certificate: IEC62133

Card authentication (optional)

RU-PAY   | AMEX | D-PAS | JCB

Safety certification

Anatel   |   BIS | WPC | CE | RoHS

Safety certification (optional)

CCC   | CTA | SRRC

finance

Certification



PCI   PTS

YES

all over the world

EMV   L1

YES

all   over the world

EMV   L2

YES

all   over the world

EMV   CL L1

YES

all   over the world

Mastercard-Paypass

YES

all   over the world

Visa-Paywave

YES

all   over the world

Discover-DPAS

YES

all   over the world

Mastercard-TQM

YES

all   over the world

QUICS

YES

all   over the world

RU-PAY

Optional

India

AMEX   (AE)

Optional

United   States

J-Speedy   (JCB)

Optional

Japan

PBOC   L1

Optional

China

PBOC   L2

Optional

China

QPBOC   L1

Optional

China

QPBOC   L2

Optional

China

PURE

Optional

Singapore

FLASH

Optional

Canada

MIR

Optional

Russia

RUPAY

Optional

India
